OPUS PC6-SQL SCADA Master Station

e-mail Opus Software Ltd





Downloads ...

PC6 SQL Brochure (PDF file 1.2 Mb)
Workstation Brochure (PDF file 1.3 Mb)
RTU Brochure (PDF file 0.3 Mb)
System Overview  (PDF file 4.7 Mb)

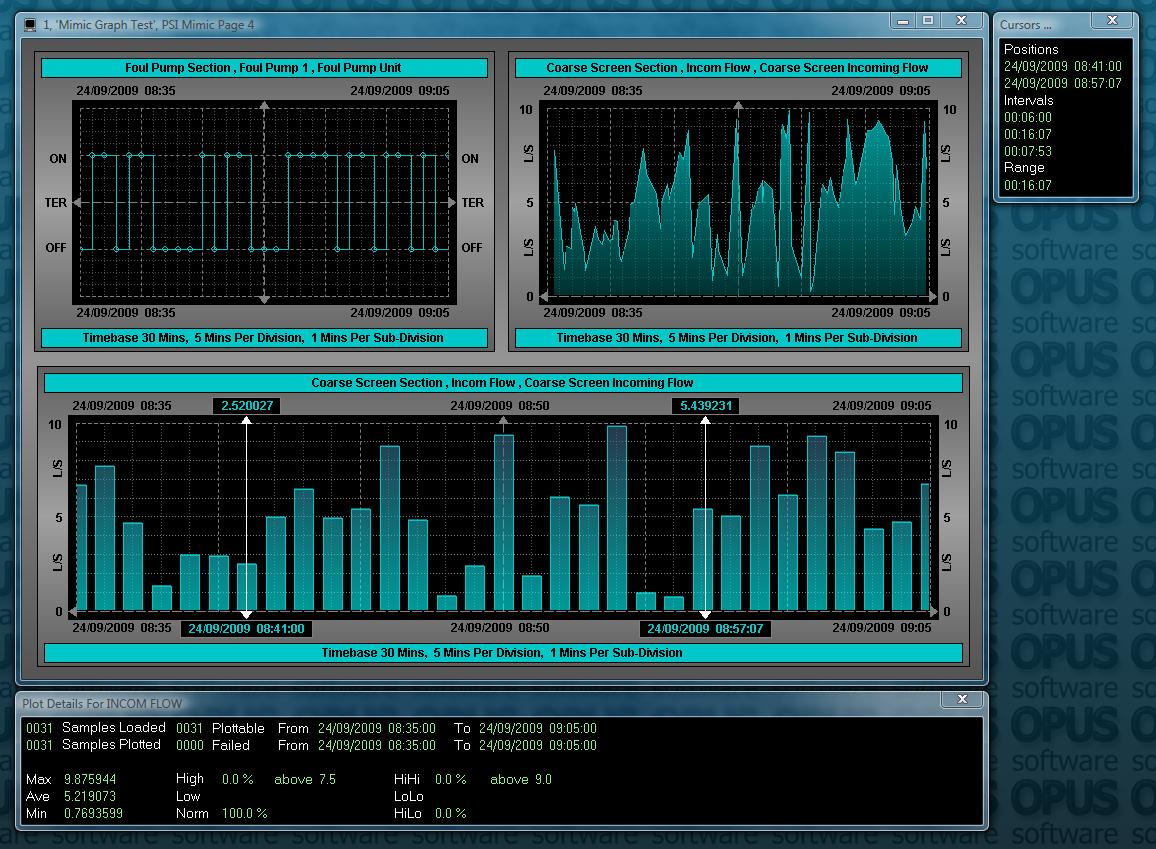

 Mimic display page, up to 1200 live data items including animations, graphs, histograms, gauges, text and bit-mapped images. Click to enlarge. Professional looking graphs of point archive and time-stamped point archive data can be created quickly and easily in graph analysis mode. Click to enlarge. The Workstation provides a graphical interface via various forms of communication link

Ideally suited to OEMs, System Integrators and Developers

OPUS SOFTWARE presents PC6-SQL, the sixth generation of Telemetry/SCADA (Supervisory Control And Data Acquisition) software. This system is without doubt the most capable and technically advanced SCADA software package available today; combining the very latest real-time multitasking software with an integrated SQL based Information Management System and sophisticated Web Interface. A range of systems are available ranging from standalone HMIs to fully integrated distributed telemetry/SCADA systems.

OPUS PC6-SQL Features

  • Integrated Information Management System.
  • Support for both Microsoft Access and Sql Server databases.
  • Integrated SQL Interface using standard Microsoft packages.
  • Integrated Web Interface for Intranet and/or Internet browser access.
  • Powerful Advanced Graphic Workstation user interface.
  • Management report generation supporting both text and HTML file generation.
  • Point processing with extensive maths, logic and control functions.
  • Support for 'out of hours' operation including pager alarms, facsimile reports and SMS mobile texting service.
  • Full featured Software Development Kit for the Microsoft .NET Framework environment.
  • Extensive system administration tools, performance monitoring and logs.
Read More ...


OPUS PSI Proprietary System Interface



Dual parameter graph display, plotting two archives against each other, linear or scatter plot formats. Click to enlarge. Map display page, up to 1200 live data items including animations, graphs, histograms, gauges, text and bit-mapped images. Click to enlarge.

Ideally suited to System Developers

OPUS SOFTWARE are currently developing the PSI (Proprietary System Interface) software suite. PSI is a Microsoft .NET framework software development package which provides an interface to third party data. Applications within PSI access and process data sourced from local and remote data based systems (IMS, Telemetry, SCADA systems, general purpose database etc.).
Standard applications such as the Opus Advanced Graphic workstation and Report Generator provide highly sophisticated interfaces to the data based systems.

OPUS PSI Features

  • Full featured Software Development Kit for the Microsoft .NET Framework environment.
  • Mimic display and editor software.
  • Graph display software.
  • Management report package.
Read More ...

OPUS Remote Telemetry Units

RTU unit Mobile phone and PDA display
View larger image
OPUS SOFTWARE have recently released the new OPUS-RTU software which is intended for use at remote unmanned sites operating as a Remote Telemetry Unit providing typical data filtering and logging facilities.
The standard Web interface enables the system's current data to be viewed over the internet using mobile devices such as PDAs and mobile phones or any PC that has internet access.
These systems are full-featured Telemetry/SCADA/IMS systems equipped with an integrated SQL Information Management System, a Web Interface, Management Report Generation, General Point Processsing functions and Alarm Paging / Text Messaging facilities.
The local and remote admin consoles can be used to assist reconfiguration, maintenance and system administration.
If you require a full graphic interface then the standard OPUS-RTU system license may be upgraded with a single AGWS/HMI full-graphic workstation user. These systems are ideally suited for all types of HMI or local/remote control room workstation operation utilising standard Windows Vista based computer systems equipped with either mouse driven or panel mount touch-screen displays.
We can supply Mini-ITX embedded PCs with solid-state data logging drives or utilise third party hardware such as the Allen-Bradley VersaView industrial computers.

OPUS-RTU Features

  • Future proof design utilising off the shelf mini-ITX embedded PCs or industrial PCs.
  • Internet access to system data using PCs or mobile devices
  • Open connectivity using our RTUQUERY utility, TCMP2 protocol or Sql queries.
  • Filtering of telemetry and archive (trend) data.
  • Periodic, time-stamped and SOE data logging.
  • Local and remote admin consoles assist reconfiguration, maintenance and system administration.
  • Upgrade options include an AGWS/HMI full graphic workstation user.
  • Fully upgradeable to support a practically unlimited number of stations, points and users
Read More ...
