The OpusFSI Live Weather Engine (continued)

Live Weather Overview and Locator

Introduction

The Weather Overview/Locator feature is independent of both the simulator and the Live Weather Engine, hence, it can be used without the simulator running and before any weather is generated. The Live Weather Overview/Locator map can also be used with Opus World Weather Themes.

The Weather Overview/Locator can be used to either locate specific weather conditions on the map area that match user specified criteria, or obtain a Weather Overview of the general weather conditions. This is very useful for locating any weather you are interested in globally, or viewing a simple overview of the weather in a specific region of the world.

The weather criteria may be good or bad, based on some very simple user specified weather options. General weather conditions are depicted on the map using coloured dots to indicate good (green),  moderately good (green yellow), moderate (yellow), moderately poor (orange), and poor (red) surface conditions.

Using the Weather Locator

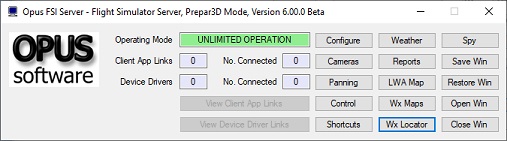

Click on the Wx Locator option within the Server dialog, a Live Weather Overview will be displayed. Click on the Update button to display the current weather conditions.

The Live Weather Overview/Locator map can be displayed on a client system using the Wx Locator button on the FSICLIENT's main form. The client system must be connected to the FSI SERVER for this feature to function. All METAR downloads are performed on the server system.

The Live Weather Overview/Locator map's caption displays the local time when the Met Station data was 'Last Updated'. The FSI SERVER program's main Spy window indicates the origin of all METAR updates.

Weather conditions are depicted on the map using coloured dots. GREEN dots represent good conditions, YELLOW-GREEN dots for moderately good conditions, YELLOW dots for moderate conditions, ORANGE dots for moderately poor conditions, and finally RED dots for poor surface conditions.

Hovering the mouse over a met station will display the station ICAO and station name.

Click the mouse cursor over a met station (using either left or right button) to display the weather station data. After each manual or automated update the Weather Station dialog is updated or removed if the Met Station no longer has a valid weather report.

The most significant weather which determines the current condition (good, moderately good, moderate, moderately poor and poor conditions) is displayed in red text. Only the most significant i.e. lowest cloud layer for each cloud type (few, scattered etc) is reported.

Zooming and Moving the Map Area

Use the + and - buttons to zoom in and out on the map. To move or drag the map area hold down the right mouse button whilst dragging the mouse, this won't work when you are hovering over a met station.

Map Type

Click on the down arrow in the map type box to select between Bing Street Map, Bing Satellite Map, Bing Hybrid Map, Google Street Map and Google Terrain Map and ArcGIS Street Map. The Weather Overview/Locator Options dialog (Options button) includes an option to enable/disable the Map Grey Scale.

Update

The Update button can be used any time you change the map location and need to refresh the weather data. The information box in the bottom right corner of the dialog indicates the current progress of the METAR download. N.B. the Weather Overview/Locator Options dialog (Options button) has an option to Auto Update at a user configurable time period.

Mode

Changes the mode between Live Weather OVERVIEW and Live Weather LOCATOR. The current mode is always displayed on the caption bar.



Options

Auto Update Every xx Minutes

Used to enable/disable the Auto Update option and set the update interval in minutes after which the current METAR data will be downloaded and updated on the map.

Anchor Weather Dialog

When enabled the Weather Station dialog will be anchored to the main Live Weather Locator dialog and aligned with the map. Select an option from the dropdown box to anchor either Top Left, Top Right, Bottom Left, or Bottom Right. When anchored the Weather Station dialog will be automatically closed each time you move the Live Weather Overview / Locator map.

Show Aircraft, Keep Aircraft in Centre, and Keep Aircraft on Map

Enable the required options to Show Aircraft, Keep Aircraft in Centre or Keep Aircraft on the visible Map. The aircraft marker will only be displayed when the sim is active and the aircraft position data has been updated. The map will show your current aircraft's location using the custom Aircraft symbol in the OpusFSI_v6/Aircraft.bmp bitmap file which you create yourself. If Aircraft.bmp does not exist then the default Aircraft_Light.bmp is used. An AircraftHeavy.bmp and AircraftRotor.bmp are also provided. If you create your own custom aircraft symbol then use roughly the same sized square bitmap image (43x43 pixels) and use the same magenta colour for the background.

OpusFSI aircraft1.bmp OpusFSI aircraft2.bmp

Show Aerodromes

When enabled all aerodromes that are not also met stations will be displayed on the map as grey dots.

Map Server Cache

Selecting Map Server Cache will speed up the display of the geographic map by saving it to cache instead of downloading it via the internet. Note that for Google and Bing maps you are limited to the number of downloads you can perform during a session.

Map Grey Scale

The Map Grey Scale option makes it easier to view certain data against the geographical map.

Topmost

This option keeps the map topmost on the display.

Opacity specifies the opacity for a map down to a minimum of 30%.



Weather Overview Criteria

This option is selected via the Options dialog. The criteria for the five different weather conditions (good to poor) are all user configurable with suitable defaults provided (as per the above screenshot).

These criteria allow limits to be specified for surface visibilities, max allowed scattered cloud bases, max allowed broken/overcast cloud bases, wind speeds, wind gusts, and max allowed precipitation levels. We also include options to allow few or scattered+ CBs (thunderstorms) and TCUs (towering cumulus). In other words, decide whether to allow isolated or widespread CBs and TCUs.

The Colour for each condition can be modified by clicking on the colour boxes and assigning your preferred colour using the standard Colour Picker dialog.

Use the 'Assign Default Colours' button to reset. All colour changes take immediate effect after clicking the OK button.

Visibility

Enter the visibility in meters for each of the weather categories (good through to moderately poor). The default values are 8000 meters or more for good visibility, 6500 to 8000 meters for moderately good visibility, 5000 to 6500 meters for moderate visibility, 3000 to 5000 meters for moderately poor visibility and less than 3000 meters for poor visibility.

SCT Cloud Base

Enter the scattered cloud bases in feet for each of the weather categories (good through to moderately poor). The default values are 1200ft or higher for good conditions, between 1100ft and 1200ft for moderately good conditions, between 1000ft and 1200ft for moderate conditions, between 800ft and 1000ft for moderately poor conditions, and less than 800ft for poor conditions.

BKN Cloud Base

Enter the broken cloud bases in feet for each of the weather categories (good through to moderately poor). The default values are 1400ft or higher for good conditions, between 1300ft and 1400ft for moderately good conditions, between 1200ft and 1300ft for moderate conditions, between 1100ft and 1200ft for moderately poor conditions, and less than 1100ft for poor conditions.

Wind Speed

Enter the max allowed wind speed figures in knots for each of the weather categories (good through to moderately poor). The default values are 12kts or lower for good conditions, between 12kts and 15kts for moderately good conditions, between 15kts and 18kts for moderate conditions, between 18kts and 24kts for moderately poor conditions, and greater than 24kts for poor conditions.

Wind Gusts

Enter the wind gust figures in knots for each of the weather categories (good through to moderately poor). The default values are 14kts or lower for good conditions, between 14kts and 17kts for moderately good conditions, between 17kts and 20kts for moderate conditions, between 20kts and 26kts for moderately poor conditions, and greater than 26kts for poor conditions.

FEW CBs

Tick the checkboxes to determine if few cumulonimbus (CB) clouds are acceptable for each of the weather categories (good through to moderately poor). CBs and TCUs are interpreted with respect to the 'Thunderstorms need TS Descriptor' Weather Preferences option.

SCT CBs

Tick the checkboxes to determine if widespread (scattered or more) cumulonimbus (CB) clouds are acceptable for each of the weather categories (good through to moderately poor).

Precipitation

Select the maximum precipitation (rain or snow) levels from the dropdown boxes for each of the weather categories (good through to moderately poor). Available entries are None, Very Light, Light, Moderate, and Heavy.



Weather Locator Criteria

This option is selected via the Options dialog. The displayed screenshot illustrates a CAVOK (ceiling and visibility OK) criteria.

You may choose to specify criteria for general weather, visibility, cloud base, reported cumulonimbus or towering cumulus clouds, precipitation type and levels, wind speeds and wind gusts.

Weather

Tick this checkbox to enable general weather checking. Specify the required weather condition (good, moderately good, moderate, moderately poor, or poor) from the first dropdown box. Specify the required matching criteria (Only, or Better, or Worse) from the second dropdown box. The 'Only' criteria will match the specified  weather condition exactly.

Visibility

Tick this checkbox to enable visibility checking. The maximum visibility can be specified in metres using the textbox provided. Enter a distance code of 9999 when interested in sites that have no visibility restriction reported (i.e. visibility is greater than or equal 10000 metres). Any time you enter a visibility figure the dropdown box will be changed to 'User' indicating a user specified visibility. The dropdown box can also be used to select the visibility assigned to any required weather condition (good, moderately good, moderate, moderately poor, or poor).

N.B. Apart from a distance code of 9999, the visibility is assumed to be a maximum distance in metres, that is, the criteria will match all sites that have visibilities equal to or less than the specified distance.

Cloud Base

Tick this checkbox to enable cloud base and coverage checking. The required minimum cloud base is specified in feet AGL. The cloud cover option (None below, Few+, Scattered+, Broken+, or Overcast) is specified using the dropdown box. A selection of 'None Below' will match sites that report no cloud at or below the specified cloud base. A selection such as 'Scattered+' will match sites that report at least 3 octas (= SCT, scattered cloud), that is, sites that have reported either scattered, broken, or overcast cloud at or below the cloud base.

Cumulonimbus

Tick this checkbox to enable the cumulonimbus (CB) cloud checks. Use the dropdown box to select the required extent (None, Few+, Scattered+) of the reported thunderstorms. A selection such as 'Few+' will match sites that report at least 1 octas (= FEW, few CB clouds), that is, sites that have reported either few, scattered, broken, or overcast cumulonimbus (CB) clouds.

Towering Cumulus

Tick this checkbox to enable the towering cumulus (TCU) cloud checks. Use the dropdown box to select the required extent (None, Few+, Scattered+) of the reported towering cumulus. A selection such as 'Few+' will match sites that report at least 1 octas (= FEW, few TCU clouds), that is, sites that have reported either few, scattered, broken, or overcast towering cumulus (TCU) clouds.

Precipitation

Tick this checkbox to enable the precipitation checks. Use the first dropdown box to select the precipitation type (All, Rain or Snow). Use the second dropdown box to select the intensity of the precipitation (None, Very Light+, Light+, Moderate+, Heavy). A selection of 'Light+' will match sites that report light, moderate, or heavy precipitation.

Wind Speed

Tick this checkbox to enable the wind speed checks. The required wind speed is entered in knots in the textbox provided. Use the dropdown box to select the required wind speed range (Exact, or Lower, or Higher).

Wind Gusts

Tick this checkbox to enable the wind gust checks. The required wind gust is entered in knots in the textbox provided. Use the dropdown box to select the required wind gust range (Exact, or Lower, or Higher).



Building Live Weather

The Weather option on the main server form will be disabled (grayed out) whenever the Live Weather Engine is building new weather. Dynamic Weather is  constructed slowly in the background to ensure there is no adverse effect on the simulator's performance (frame rates). It generally takes between 30 and 35 seconds to construct new dynamic weather.

You can force a weather update via,

·         the Add-ons menu (OpusFSI Weather options),

·         the Full Weather Reload button in the Weather dialog

·         a Shortcut Control (OpusFSI_v6_ User Guide).

Alternatively if you want to revert to a weather theme, select Enable World Weather Theme from the Add-on menu.

Live Weather updating can be temporarily enabled and disabled via the OpusFSI Live Weather option in the simulator's Add-ons menu.

Dynamic Weather Region

Dynamic Weather covers an area of 1280km by 1280km (800 x 800 miles, or 691 x 691 nm) centered on your aircraft's current location.

Weather Data Collection

The METAR data can be loaded via the Internet from either the NOAA (default) or VATSIM servers. You can even specify to fill in missing data from the VATSIM server. The latest METAR reports for all Met stations within your flying area (weather horizon) are downloaded at the start of the flight, and thereafter either at the user specified update period (default 60 mins) or after you have flown the user specified distance from your previous location.

METARs of course do change periodically, most airports will issue updated METARs half hourly at 20 past and 50 minutes past the hour. However, METARs are also issued at airports any time there is a significant change, that includes changing visibility and cloud layers, especially any changes to cloud coverage and visibility. Other METARs are mostly reported hourly.

Hence, these reports will often contain different cloud coverage data (very usual since the cloud coverage does change frequently). During a weather update, any change in METAR will be reflected in the generated weather. Broken clouds may turn into few clouds, few to broken, clouds may disappear or appear where there were none before etc.

The LWE treats all METARs as gospel and generates the weather and clouds accordingly, so unless you have smoothing enabled don't be too alarmed if after an update your cloud coverage thickens, diminishes, vanishes, or new cloud suddenly appears. So far all the METARS I have seen accurately reflect what is seen out of the window.

Also bear in mind the LWE interpolates the weather, radiating outward from every met station within the weather grid. If a met station reports broken cloud coverage, that coverage will radiate outward. If during a later update the met station is reporting just few clouds then the thick broken cloud will be replaced with few clouds.

If there are no Met stations found within the current weather horizon then the weather horizon is repeatedly expanded by 50% until one or more Met stations are located. In such cases, these stations are projected onto the outer rim of the weather grid and the localized weather within the grid is interpolated from this data.

If you do not like change then either disable weather updates via the simulator's Addon menu, or set the weather update frequency and distance to something like 60 minutes and 400km then YOU decide when you want the weather updated. For example, update the weather prior to takeoff and just before descending. It's up to you. Alternatively you can save the current weather as a World  Weather Theme, when you subsequently load that theme the weather will not change, this is useful for long flights completed over several days.

Weather Data Smoothing

Weather data smoothing prevents abrupt and sudden unrealistic changes in weather as you pass from one weather cell to another.

Mist and Fog Layers

Mist and fog is not depicted very well within the simulator, in fact these layers are not apparent at all from altitude. To improve the visual effect within the simulator, the Live Weather Engine automatically tops the mist and fog layers with a thin layer of stratus cloud with a coverage of 8 octas for mist and fog.

In P3D simulator mode the Enable Volumetric Fog option is set automatically using the VolumetricFog setting within the Prepar3D.CFG file. If you change this setting during a P3D session then either change the Enable Volumetric Fog Effect in OpusFSI to match P3D or restart OpusFSI.

Low Overcast Effect

Low Overcast Effects come into force whenever the overcast cloud cover is less than about 6000 feet AGL. You must be IN the Low Overcast Effect to see it. Overcast by definition means 90% or more cloud coverage. Don't expect to see solid blanket type overcast when looking vertically downward ... you WILL see transparent holes just like you do in real life until you get IN an OpusFSI Low Overcast Effect (an overcast below 6000 feet).

Cloud Positions and Textures

It is not possible for any software to position the clouds. The simulator does this itself and will reposition the clouds each time the weather is updated irrespective of whether there has been any changes to the cloud layering. No software can stop the cloud repositioning or control it.

It is not possible for any software to select the individual cloud textures or bitmap images for rendering on the screen. This is all done by the simulator. You install the textures you prefer and the simulator selects and displays them to match the cloud layering. The cloud types used will be a mixture depending on a number of factors including weather and season.

Cloud Icing

The LWE will automatically set cloud icing within the cloud to none, low, medium, high, or severe depending on the ambient temperature within the cloud, the cloud type, and the cloud moisture level. Some icing is likely to occur when the ambient temperature is between -20C and 0C, with more noticeable effects when the ambient cloud temperature is between -12C and -8C. All calculated icing effects require valid GRIB forecast data.

Your aircraft has to be configured to handle icing. Many fuel injected aircraft in P3D have the 'carb heat bug', their real counterpart doesn't possess carb heat however P3D will still simulate carb icing and you'll see your engine power drop quite drastically within the first few minutes of flight in icing conditions. Simply pressing the H key will solve this problem.

Cirrus Cloud Layers

Since high level cirrus cloud is not included within the standard METAR reports, the Live Weather Engine generates a single cirrus cloud layer if the Cirrus Clouds option in the Weather dialog has not been disabled. The cirrus cloud coverage is generated randomly between the configured lower and upper Cirrus Altitude Range. The valid range of altitude settings are from 18,000ft up to 50,000ft (default range is 34,000ft to 44,000ft).

The Auto Cirrus Clouds option will automatically display cirrus cloud whenever it determines the weather is quite changeable possibly due to a weather front. In fairly stable conditions the cirrus cloud will disabled. In flight, the cirrus is reassessed every 80 miles flown.

Winds and Temperatures Aloft

Winds and temperatures aloft are downloaded from the GRIB forecast. The GRIB forecast data is produced by NOAA and provides a global forecast of atmospheric conditions such as wind speeds, directions, and atmospheric temperatures at various altitudes along with the tropopause. It also provides a forecast of the tropopause height. The GRIB data covers the entire globe at 1 degree latitude and 1 degree longitude precision.

This data is used by the weather engine to determine all the lower and upper atmospheric conditions. The LWE uses the forecasted data to create ambient wind and temperature targets for all different altitudes from FL040 up to FL450, and even a temperature forecast for FL540.

The LWE will use GRIB data to provide realistic real world atmospheric conditions for you within the simulator.

The surface and FL200 through to FL420 targets are displayed within the Upper Atmosphere weather report along with the Tropopause forecast data (height, temp, and wind). The GRIB forecast cycle date and Zulu time code is displayed in the Upper Atmosphere Weather Report window.

Each cycle forecast contains 360 hours (15 days) of forecast data and is typically made available about 9+ hours after the cycle time, on occasions the 0000Z is posted after about 6+ hours. The LWE always tries to load the most recent cycle, and requests the previous cycle if that is not available yet. The GRIB download will automatically revert to downloading the FULL GRIB data file if the selective download from the 'Query' server fails to download any cycle data for the previous 24 hour period. Please note, the world wide GRIB data forecasting cycles are updated less frequently than the North American specific (USA) forecasts. A future update may see us access a variety of GRIB forecast data depending on your current Lat/Lon coordinates, but for now the world wide data will be used as the sole source of GRIB forecasts.

You can follow the process of the GRIB data download in the Spy window and in the Opus Lower and Upper Atmosphere Report windows. If any OpusFSI Weather Report is on display the Live Weather Engine will no longer force or update the sim Lower or Upper Atmosphere reports, instead all GRIB download and progress messages are displayed in red on the second line of all displayed OpusFSI Weather Reports. The procedure will progress through the following stages,

Connecting To The GRIB Server
Downloading The GRIB Data
Extracting The GRIB Data
Decoding The GRIB Data
Reading The GRIB Data
Preparing The Weather Data

The last stage covers both preparing the GRIB data for use in the weather map and also downloading the weather map's METAR data. Whilst the download is in progress the Lower/Upper report windows will indicate how many bytes have been downloaded. The following errors can be reported in the Lower/Upper report windows,

GRIB Forecast Data Disabled At Present
Unable To Connect To The GRIB Server
No Data Available At Present

The first message indicates that the GRIB download is not required at present. The 'No Data' message is a general error message implying there is no valid data available to prepare the Lower/Upper reports with. If the LWE is 'Unable To Connect To The GRIB Server' then no further cycle downloads will be attempted, but the LWE will attempt to download the expected current cycle during each weather update.

If the GRIB data hasn't been decoded check your \OpusFSI_v6\FSIDECODER.log file for errors.

The LWE will only download the GRIB data when it determines the current data is out of date (older than 12.5 hours) and a new more accurate forecast cycle is available. In addition the GRIB Data Validity Period allows you to specify the validity period for the downloaded GRIB cycle data between 3  and 240 hours in increments of 3 hours (default 12 hours). You can also specify whether you wish GRIB data to be downloaded and updated in flight or just whilst on the ground before a flight.

After downloading the relatively large GRIB data file the LWE will proceed to extract all the data and then decode the extracted data before downloading the current METAR weather reports for your current 992km x 992km area. Extracting and decoding the GRIB data is a lengthy process, taking about 10 seconds to extract the GRIB data and between 25 and 35 seconds to decode the extracted data.

Wind Shear

There are three levels of wind shear at low elevations (< 4000 feet AGL). Wind shear is only associated with reported thunderstorm (TS) or squall (SQ) conditions and requires reported surface winds of at least 20 knots.

Where appropriate a Slight, Moderate, or Severe Wind Shear warning is appended at the end of the QNH pressure line in the Opus Local, Destination, and Alternate Weather Reports, just before the reported surface wind conditions.

Moderate wind shear levels require surface wind speeds of 30 knots or more, severe wind shear levels require surface wind speeds of at least 40 knots and warm conditions (surface temperatures of at least 20C).



METAR (and non METAR) Station List Corrections and Additions

Four template text files are provided which can be renamed and edited. These new files can be used to specify any corrections or additions to the LWE station list.

The template text files are,

OpusFSI_MetStation_Additions_Template.txt
OpusFSI_Station_Additions_Template.txt

OpusFSI_MetStation_Corrections_Template.txt

OpusFSI_Station_Corrections_Template.txt

Just edit the files and remove the '_Template' suffix from the filename and the LWE will read the content and update its station data each time the FSI SERVER program is started.

If the new station is a met station then add it to the OpusFSI_MetStation_Additions.txt file. Met stations must be known to either NOAA or VATSIM in order for us to extract the METAR. The NOAA station list can be found at  http://aviationweather.gov/static/adds/metars/stations.txt

If the new station is not a met station then enter it in the OpusFSI_Station_Additions.txt file.

For corrections to existing stations edit the OpusFSI_MetStation_Corrections.txt or OpusFSI_Station_Corrections.txt as appropriate.

Master copies of these files will eventually be kept in-house to amend and update the MetStation data file with common changes and additions to the listed NOAA station data.

OpusFSI MetStation Additions

Prior to use please rename your file to OpusFSI_MetStation_Additions.txt.

Enter a list of met station additions in the form,

ICAO  "station_name"  latitude  longitude  elevation

Where

·         the ICAO code always appears at the start of a new line

·         the elevation is specified in feet amsl

·         the lat/lon are entered in the following exact form <compass_direction>degrees minutes (mm.mm)

·         latitude  =  Ndd mm.mm or  Sdd mm.mm   (9 characters)

·         longutude  =  Eddd mm.mm or Wddd mm.mm  (10 characters)

For example,

EGKK  "London Gatwick"   N51 08.88  W000 11.42   196

EGLL  "London Heathrow"  N51 28.65  W000 27.68   80

These additions may also be used as corrections.

OpusFSI Station Additions

Prior to use please rename your file to OpusFSI_Station_Additions.txt

Enter a list of station additions in the form,

ICAO "station_name" latitude_longitude elevation "country" "runways"

 Where

·     the ICAO code always appears at the start of a new line,

·     the elevation is specified in feet amsl, the latitude_longitude is either specified in the free form used in flight plan entries or in the following exact form,

<compass_direction>degrees minutes (mm.mm).

latitude  :  Ndd mm.mm or  Sdd mm.mm   (9 characters)

longutude : Eddd mm.mm or Wddd mm.mm  (10 characters)

For example,

 EGNX "East Midlands" 52.831111N1.328056W 309 "United Kingdom" "9 27"

 EGLL "London Heathrow" N51 28.65 W000 27.68 80 "United Kingdom" "9L 27R 9R 27L"

Additions may also be used as corrections to the current data.

OpusFSI MetStation Corrections

Prior to use please rename your file to OpusFSI_MetStation_Corrections.txt.

Enter a list of met station corrections in the form,

ICAO  "station_name"

Where the ICAO code appears at the start of the line.

For example,

NZWB "Blenheim Woodbourne"

OpusFSI Station Corrections

Prior to use please rename your file to OpusFSI_Station_Corrections.txt

Enter a list of station corrections in the form,

ICAO  "station_name"

Where the ICAO code appears at the start of the line

For example,

NZWB "Blenheim Woodbourne"



Turbulence and Dynamic Head Movement (DHM)

General DHM Options can be found in the FSI SERVER's Configuration dialog. These options allow general DHM and associated 'Bump Aircraft' turbulence to be enabled for VC view modes, 2D view modes, and custom view modes without needing the Live Camera interface to set up camera views. General DHM settings are not used when Live Camera is enabled.

Separate options are provided to enable the general DHM and aircraft turbulence for VC view modes, 2D view modes, and custom view modes. Each view mode has its own configurable DHM and Bump Aircraft settings that can be adjusted by you to suit your system or personal taste. These General DHM Options employ real life captured 3D accelerometer data with options to reference either the light or heavy aircraft data sets. All turbulence effects are supervised by the Live Weather Engine (LWE) which considers numerous meteorological and ambient conditions.

Refer to the Live Camera guide for a description of the DHM and aircraft turbulence settings.



OpusFSI Site Effects

The localised Site Effects are additional effects, additional to the normal real time non-localised turbulence, clear air turbulence and wind shear which are determined solely on the basis of local meteorological conditions. All sites covered by the standard Opus Site Effects can be found listed in the OpusFSI_Site_Effects_List.txt text file.

Site Effects relate to your point of departure and destination ICAO.

You can specify your own Site Effects, whether real or not. You can even override the standard OpusFSI site effects if you wish. A template file is provided in \OpusFSI_v6\OpusFSI_User_Effects_Template.txt, just copy this to OpusFSI_User_Effects.txt and add the new effects.

Comments can be added to the file by starting the line with a ; character.

N.B. If you make adjustments to this file you must restart OpusFSI for the changes to come into effect.

User Site Effects

Enter a site ICAO (e.g. Site = EGKK) followed by a list of one or more optional conditions.

You can enter multiple sets of conditions for a site, for example where you have obstacles on the approach to an airfield and also close to the runway.

e.g.

; EGKK Gatwick London

; Turbulence due to high ground to the S and SE, between 3 and 8 nm from the airport

; between 0 to 2000 feet AGL.



Site = EGKK

Direction = S SE

Distance = 3 8 nm

Elevation = 0 2000

Turbulence = 1



; EGKK Gatwick London

; Turbulence due to trees to the W of RW08 between 1 and 4 nm from the airport

Site = EGKK

Runway = 08          ;30 degrees either side of RW08

Distance = 1 4 nm

Turbulence = 1

Turbulence and Wind Shear

The Turbulence and Wind Shear factors are interpreted as follows,

 0 = No Increased Effect

 1 = Slight Increased Effect

 2 = Moderate Increased Effect

 3 = Severely Increased Effect

e.g.

; EGKK Gatwick London

; Turbulence due to trees to the W of RW08 between 1 and 4 nm from the airport

Site = EGKK

Runway = 08          ;defaults to 30 degrees either side of RW08

Distance = 1 4 nm

Turbulence = 1

In the case of Wind Shear, the normal effects require thunderstorm or squalls to be reported at the location. All increased levels permit some wind shear when any TCU or rain bearing storm clouds are present. The higher the level the greater the effect. Wind shears are always relevant to the whole surrounding area. In other words, they are not restricted by the specified conditions with the possible exception of Distance.

All increased turbulence effects are graduated as you enter or leave a defined zone based on the Distance, Bearing, Elevation, Wind Speed and Temperature conditions. The graduation is based on 15% of the specified range.

For example, if you specify a temperature condition of 20 degrees C with a Severe increase in turbulence (level 3) then when the surface temperature reaches 20C there will be a slight increase, at 23C there will be a moderate increase, and at or above 26C there will be the full severe increase.

If you specify a Bearing from 0 to 90 with a Severe increase in turbulence then when your bearing gets within 0 or 90 degrees from the airport location there will be a slight increase, when you get within a bearing of 13.5 or 76.5 degrees there will be a moderate increase, and within the central bearing of between 27 and 63 degrees there will be the full severe increase.

Runway

If the effect is limited to a certain runway then enter this condition using the two digit runway designation. If you specify a Runway the software will calculate an appropriate bearing from and to the station based on the specified runway heading +- 30 degrees.

Runway codes can be specified with an optional L (left) or R (right) suffix. In which case the resulting From and To Bearings will be biased toward the specified runway approach radial. For example, 'Runway = 16L' would be equivalent to setting 'Bearing = 150,190', and 'Runway = 16R' would be equivalent to setting 'Bearing = 130,170'.

If you specify a Runway then do not specify a Direction or Bearing.

e.g. Runway = 16  ; Bearing 130 to 190

e.g. Runway = 16L ; Bearing 150 to 190

e.g. Runway = 16R ; Bearing 130 to 170

Location of an obstacle or high ground, Distance, Direction/Bearing and Elevation

You can specify where an obstacle such as trees or high ground is by specifying a distance and either compass directions or bearings. You can also specify conditional elevations, the default range is 0 to 18,000 feet AGL.

If you specify a Direction from and to (from the station) the software will convert it to a bearing from and to. You can use compass points N,NNE,NE,ENE,E etc, for the Direction, the decoder will automatically extend the specified directions/bearings by 30 degrees either side to allow for graduation.

The distance (0 to 80) defaults to km and can also be specified in nm or sm by including the units after the distance.

e.g.

; EGKK Gatwick London

; Turbulence due to trees to the W of RW08 between 1 and 4 nm from the airport

Site = EGKK

Runway = 08          ;30 degrees either side of RW08

Distance = 1 4 nm

Turbulence = 1



or,

; EGKK Gatwick London

; Turbulence due to trees to the W of RW08 between 1 and 4 nm from the airport

Site = EGKK

Bearing = 40,120     ;40 degrees either side of RW08

Distance = 1 4 nm

Turbulence = 1



e.g.

; EGKK Gatwick London

; Turbulence due to high ground to the S and SE, between 3 and 8 nm from the airport

; between 0 to 2000 feet AGL.

Site = EGKK

Direction = S SE

Distance = 3 8 nm

Elevation = 0 2000

Turbulence = 1

Conditional Wind Direction and/or Wind Speed

If the effect is conditional on the prevailing wind direction and/or wind speed then specify that using the Wind Direction and Wind Speed conditions.

You can specify two compass points as general wind directions instead of specific directions.

e.g.  Wind Direction = SSW SW

The two directions, approx 202 to 235 degrees, would be converted to 172 to 265 degrees, allowing a 15% and 30% graduated effect within this specified range.

You could also enter a wind direction of SW, the decoder will convert this to a from/to a range of 205 and 265 (i.e. adding +- 30 degrees to the general direction).

The wind speed is in knots. The speed relates to light aircraft and is automatically increased by 10 knots if heavy aircraft is specified in the DHM parameters. The effect is graduated so you will get a slight increase at that speed limit, a moderate increase at the speed + 20%, and the full severe (if specified) increase at speed + 40%.

For example assuming a setting of 15 knots and a severe turbulence level 3 specified ...

For light aircraft we would get ...

Slight turbulence at 15 knots,

Moderate turbulence at 18 knots,

Severe turbulence at 21 knots and above.

For heavy aircraft we would get ...

Slight turbulence at 25 knots,

Moderate turbulence at 30 knots,

Severe turbulence at 35 knots and above.

e.g.

; EGNX East Midlands

; Moderate turbulence and slight wind shear on RW09 in southerly winds above 15 kts

Site = EGNX

Runway = 09

Elevation = 0 3000

Wind Direction = S   ;30 degrees either side of S

Wind Speed = 15

Turbulence = 2

Wind Shear = 1

or,

; EGNX East Midlands

; Moderate turbulence and slight wind shear on RW09 in southerly winds above 15 kts

Site = EGNX

Runway = 09

Elevation = 0 3000

Wind Direction = 140 220   ;40 degrees either side of S

Wind Speed = 15

Turbulence = 2

Wind Shear = 1

Conditional Temperature

If the effect is conditional on the temperature then specify that using the Temperature condition specified in degrees C.

e.g.

; Turbulence in temperatures above 25 degrees C

Temperature = 25

Turbulence = 1

Example User Effects file <OpusFSI_v6>\OpusFSI_User_Effects.txt

;------------------------------------------------------------------------

;                          OpusFSI Site Effects

;

; Enter a list of enhanced site effects each effect must contain the Site

; description (with ICAO code) followed by any relevant conditions and

; increased effects levels,

;

; Site = ICAO code

;

; Conditions and effects ...

;

; Runway = 00 to 36

; Direction = from to

; Bearing = from to

; Distance = from to km/nm/sm

; Elevation = from to

; Wind Direction = from to

; Wind Speed = from

; Temperature = from

; Turbulence = 0 to 3

; Wind Shear = 0 to 3

;

; Defaults ...

;

; Runway = XX

; Direction = 0 360

; Bearing = 0 360

; Distance = 0 8 (Default km)

; Elevation = 0 18000

; Wind Direction = 0 360

; Wind Speed = 0

; Temperature = -99

; Turbulence = 0

; Wind Shear = 0

;

; Where,

;

; Runways are specified using their two digit designation.

; Directions from the Site are in degrees true (0,360 = all directions)

; Bearings to the Site are in degrees true (0,360 = all directions)

; Distances (in units of km, nm, or sm) can range from 0 to 128km.

; Elevations are in feet AGL (0,18000 = covers all lower levels)

; Wind Directions are in degrees true (0,360 = all wind directions)

; Wind Speeds are in knots

; Temperatures are in degrees C

;

; Directions, Bearings, and Wind Directions can also be specified using

; cardinal directions (i.e. compass points N,NNE,NE,ENE,E,etc.). In such

; cases the 'To' compass point is optional.

;

; The Turbulence and Wind Shear factors are interpreted as follows,

;

; 0 = No Increased Effect

; 1 = Slight Increased Effect

; 2 = Moderate Increased Effect

; 3 = Severely Increased Effect

;

; In the case of Wind Shear, the normal effects require thunderstorm or

; squalls to be reported at the location. All increased levels permit some

; wind shear when any TCU or rain bearing storm clouds are present. The

; higher the level the greater the effect. Wind shears are always relevant

; to the whole surrounding area. In other words, they are not restricted

; by the specified conditions with the possible exception of Distance.

;

; All increased turbulence effects are graduated as you enter or leave a

; defined zone based on the Distance, Bearing, Elevation, Wind Speed and

; Temperature conditions.

;------------------------------------------------------------------------

;

; Guidelines,

;

; General Turbulence ... 4 nm, 2000 ft

; General Wind Shear ... 4 nm, 3000 ft

; Buildings & Trees .... 2 nm, 1500 ft

; Final Approach ....... 3 km, 1500 ft



; EGKK Gatwick London

; Turbulence and wind shear on RW26 in strong S and SW winds



Site = EGKK

Runway = 26

Distance = 0 4 nm

Elevation = 0 1000

Wind Direction = S SW

Wind Speed = 15

Turbulence = 2

Wind Shear = 1



; EGKK Gatwick London

; Turbulence due to trees to the W of RW08



Site = EGKK

Runway = 08

Distance = 1 4 nm

Elevation = 0 1000

Wind Speed = 15

Turbulence = 1



; EGKK Gatwick London

; Turbulence due to high ground to the S and SE



Site = EGKK

Distance = 3 8 nm

Direction = S SE

Elevation = 0 2000

Wind Speed = 12

Turbulence = 1



; EGNX East Midlands

; Turbulence and wind shear on RW09 in strong southerly winds



Site = EGNX

Runway = 09

Elevation = 0 3000

Wind Direction = S

Wind Speed = 15

Turbulence = 2

Wind Shear = 1

Testing Site Effects

You can test any of your specified effects using a GLOB imported METAR to specify the weather, using Slew mode to raise the aircraft off the ground and position it on the approach, or simulate an approach. It is helpful to temporarily disable DHM when using slew mode. You must of course specify the Destination in the Weather dialog and Update the weather. It is best with P3D in windowed mode so you can have the Spy window open at the time. The number of Opus and User Site Effects is displayed in the Spy window immediately after the current device list. The Total number of effects takes into account any Opus effects that have been replaced by your definitions. The LWE displays the results of all site related turbulence changes in the window, identifying which site effect factored in the most.

For example, Site Effect 4: Turbulence Increase 2

You can keep refreshing the Destination Weather Report to see what the calculated bearing and distance is to the site, that will also give you some idea how far the end of the runway is from the site's defined latitude and longitude position.



Flight Planning Assistant Reports


Reports may be selected from the sim Add-ons menu. The reports include,

·         Sim Weather Reports using the simulator's own text menu window,

·         Opus Weather Reports using OpusFSI Weather Report windows,

·         OpusWeather (METARs),

·         OpusWeatherReport (GRIB Data),

·         OpusFlightReport (Flight Plan),

·         OpusSidStarReport (SIDs and STARs)

The weather, maps and reports can be generated before the flight has been loaded provided a flight plan has been specified, identifying the point of departure. The weather generation will be a slow process whenever the simulator is not running (due to SimConnect delays), fastest when the simulator is running and the flight has not been loaded (i.e. with the start up screen displayed or minimised).

Sim Weather Reports

The Sim Weather Report is a transparent menu displayed within the sim's own text menu window,

The Shortcut Controls in the Server dialog enable you to configure key/button assignments to display and cycle through Weather Reports. Refer to the User Guide for further details.

The report selection window provides links to the Local Area Weather Report, Lower Atmosphere Weather Report, Upper Atmosphere Weather Report, the Flight Plan En Route Report, the Destination report and four Alternate met station reports.


The weather report windows indicate 'No Weather Available At Present' if the LWE hasn't generated or updated the weather at the time.

The distance to the destination and alternates is displayed in both km and nautical miles. You must be within 640km (400 miles) of the station to view the report.

If you reconfigure any of the ICAO codes in the Weather dialog during flight then you must re-display the weather report window.

The report selection window can be manually undocked and re-positioned on multi-screened PCs.

Either click on an option or enter the relevant number to display the required report or exit the menu.

The Local Area Weather Report, Destination report and four Alternate met station reports provide an overview of the target meteorological conditions for your chosen location and, if there is room, show the targets for the upper (above FL200) ambient temperature (SAT), ambient wind direction and speed, also the current ambient air temperature and TAT inside the simulator. The idea being, you can use these report windows to monitor the temperatures and above FL200 compare the target temperatures and winds with the actual.

These reports can be used in place of ATIS and are accurate out to the edge of the weather map 640km (about 400 miles or 345nm). You can use this feature to check the weather and wind direction at non-ATIS airstrips.


All weather reports have a Live (dynamic weather update), Imported (METAR File Import), Historic or Disabled (LWE currently disabled) indication in the title line. The ICAO codes and where appropriate the station names are listed within each of the weather report windows together with the distance to the station. The distances, displayed in both km and nautical miles, will update when you cross into a new weather cell. The (m) displayed before the ICAO code signifies a METAR is available for the location, (r) signifies Relocated Weather mode has been enabled. If zero METARs are reported then it means there are no met stations in your current weather cell, that is within 5 to 10 miles of you.

Where appropriate the METAR time code (DDHHMMZ) is displayed in the first line, containing the reported QNH pressure. The METAR time code is only displayed within a weather report if there is a single METAR for the location. Stabilised pressures are depicted using the phrase 'Static' whenever they are applicable indicating that pressure stabilization has been configured in the Weather Smoothing dialog. In those circumstances the pressures are stabilised (static) between weather updates to prevent P3D wind shift problems.

Where appropriate a Slight, Moderate, or Severe Wind Shear warning is appended at the end of the QNH pressure line in the Opus Local, Destination, and Alternate Weather Reports, just before the reported surface wind conditions.

The Destination Weather Report will have an Actual label appended after the QNH whenever the Destination weather has been checked and verified 'inside' the simulator. Hence, the label confirms that the Destination weather inside the simulator matches the Opus on-screen Destination Weather Report. This will generally occur once you are airborne and within 200km of your Destination.

Surface winds are depicted as 'Wind XXX at XX knots' within the weather reports. You will see Variable and Gusting XX messages after the Wind statement indicating variable wind directions and gusty surface conditions, the XX giving the max gust wind speed in knots.

If (pseudo effect) is displayed after a cloud layer it's just to remind you that that cloud layer is a fake layer that has been added by the LWE to produce the fog or mist effect which tops the fog/mist layer with a thin stratus cloud so that you can see it from above, otherwise the sim is unable to depict the poor vis surface layer. So don't expect to see it in the corresponding METAR statement. Visibility is displayed in both metres and statute miles.

If Magnetic Variation is enabled (Weather's User Preferences dialog) then there will be a difference between the reported wind directions METAR and GRIB forecast data which always report directions with respect to True North and the current wind directions within the simulator and reported by ATIS which are always Magnetic directions. To assist the pilot, the LWE will show the current Magnetic Variation in the local weather report windows, displayed in the form 'MagVar XX.X' at the end of the surface wind information. You must ADD this value to all wind directions to convert them to Magnetic directions at the current location. Please note, OpusFSI cannot show the Magnetic Variation at the Destination or Alternate sites, only at your current location in the simulated world.

If you have specified a Cruise Altitude then the report will include the target cruise altitude wind direction, speed and ambient temperature displayed in the form 'Cruise ddd/ss tempC'. Unknown temperature and dew points are shown as ??.

Reports will append an (S) label to all cloud descriptions to inform you that Cloud Smoothing is in force at that location and the listed cloud layers may therefore differ from what is displayed in the simulator.

The Local Area Weather Report conditions are the target meteorological conditions for your current 16km square weather cell. Even though the targets are assigned to weather cells, they are in fact assigned to single points within the simulator. In flight, the defined point for the weather cell can be over 10 miles away from your aircraft's current position. Furthermore the target weather will naturally spill over into adjacent cells, hence the weather you see out of the cockpit may match more closely with the weather assigned to an adjacent cell and not the reported cell. Please keep this point in mind when using the Local Area Weather Report whilst airborne.

The Upper and Lower Atmosphere Weather Reports are valid if you have enabled the option to Enable GRIB Forecast in the Weather dialog's Download Weather Options. If it is not enabled you will see the message "GRIB Forecast Data Disabled At Present".

The Lower Atmosphere Weather Report displays the surface and FL040 through to FL180 targets along with the current temperature and wind target. Click anywhere to return to the main report selection window.


The Upper Atmosphere Weather Report displays the GRIB forecast cycle date and Zulu time code as the first item on the list together with the Tropopause forecast data (height, temp, and wind), surface and FL200 through to FL420 targets along with the current temperature and wind target. Click anywhere to return to the main report selection window.


Please note, the world wide GRIB data forecasting cycles are updated at approximately the same time as  the North American specific (USA) forecasts and it can take between 6 and 9 hours for them to update a cycle.

The raw GRIB data is shown in the Upper Weather Report window whenever either of the Sim Friendly GRIB options are ticked (Wind or Temperature).

The Flight Plan En Route Weather Reports lists all identified met stations extracted from the flight plan, alternatively if you don't have a flight plan then any specified Destination and Alternate met stations are listed. Select the required station from the list to display the current reported weather at that site. The report displays the navigation points associated with each listed Met station, these are appended to each line as [navpnt]. At present only the first associated navigation point is shown even though the same Met station may be common to a multiple, normally consecutive, group of navigation points.

If you change the flight plan the weather report may list Met stations as (Not Updated) indicating that a weather update is needed in order to request and download the new METARs.


The Local, Destination and Alternate Weather Reports include the available runways and elevation in both feet and metres. The information is displayed immediately following the surface wind data. The runways are listed in the preferred order of use based on the current surface wind.

The runway data is obtained from the Navigraph SIDSTARS NAVDATA. If you don't have a subscription to Navigraph then you can use the PMDG NAVDATA (the SIDSTARS Navigraph text files). The location of your NAVDATA folder must be identified in the Flight Plan Options dialog using the appropriate P3D Browse button (e.g. F:\P3D\PMDG\NAVDATA\).



Opus Weather Reports

As an alternative to the Sim Weather Reports if you wish to display weather report information inside or outside the sim you can use the Opus Weather Reports. Each time you select the Opus Weather Reports option it will open an additional Weather Report window,

The FSI SERVER allows up to nine Weather Report windows to be opened and sized/positioned anywhere on a single or multi-screen system. You can change the font, font style and font size to suit your own screen resolution. The OpusFSI Weather Reports can be displayed either using the Wx Report button on the FSI SERVER form or using the 'Opus Weather Reports' option via the simulator's Add-ons Menu. If any OpusFSI Weather Report is on display the Live Weather Engine will no longer force or update the sim Lower or Upper Atmosphere reports. Instead all GRIB download and progress messages are displayed in red on the second line of all displayed OpusFSI Weather Reports. Provision has been made to display other useful information and messages on the second line of the OpusFSI Wx Reports. The destination weather report includes the available runways and radio and navigation frequencies.



On program startup the first four OpusFSI Weather Reports are primed to display the Local Weather, Lower Atmosphere, Upper Atmosphere, and Destination Weather respectively. The remaining reports are primed to open with the Weather Report Main Menu on display.

The Options button can be used to specify the following OpusFSI Weather Report options,

Top Most - Displays an OpusFSI Weather Report form top most on the screen.
Opacity - Specifies the opacity for an OpusFSI Weather Report form.
Font - Specifies the display font for an OpusFSI Weather Report form.

Set Defaults - Restores all OpusFSI size, font, topmost, and opacity defaults for the current report form. By default the font is set to "Courier New, 9 point", topmost is set to true, and opacity set to 100%. The form size is adjusted to give the minimal footprint for all report formats.

After specifying the above you may choose to 'Modify' the current report form, or click on 'Modify All' to change all OpusFSI Weather Report forms. The 'Resize' checkbox can be used to resize all forms the current form's size.

Specifying both Top Most and an Opacity less than 100% will allow the OpusFSI Weather Report form to be sized, positioned, and displayed over the simulator's main display. This will be found helpful when operating the simulator in Maximised or Full Screen mode.

Text Reports

The other sim Add-ons menu options are text reports displayed within the default text editor program. To change the default text editor program just right click on any .txt file and select the Open with option then select the Choose default program.. option and select Notepad or the default program you want to be used to view the .txt files.

OpusWeather (METARs)

A detailed METAR report (including TAFs if you have enabled them in the Weather Download dialog) for the weather map (800 x 800 miles) is generated each time the weather is updated. Your local Met station is displayed together with your  current distance from the station. Any specified Destination and Alternate sites are appended to the OpusWeather.txt report file. The report is saved in the text file <OpusFSI_v6>\Weather\OpusWeather.txt where <OpusFSI_v6> identifies your OpusFSI_v6 installation folder.

Example OpusWeather.txt,

OpusFSI Downloaded METARs, Software Version 6.00.0 Beta

Downloaded 25 November 2019, 09:52 Hrs - Live

Simulator 30 May 2017, 14:24 Zulu

Destination : EGKK, LONDON/GATWICK A, Distance 204.3 km

Local MetStn : EGNX, EAST MIDLANDS, Distance 1.7 km

EGNX 250920Z 11011KT 9000 BKN008 BKN017 09/08 Q1001
EBAW 250920Z 15006KT 9999 SCT020 08/06 Q1009 NOSIG
EBBE 250945Z 16004KT 9999 FEW250 09/06 Q1009 BLU BLU
...
LFYR 250930Z AUTO 14006KT 9999 -RADZ OVC016 09/07 Q1008 TEMPO 4000 -RADZ BKN005 OVC008
LSGC 250950Z VRB03KT 9000 BKN009 04/04 Q1009
LSZG 250950Z 10003KT 0250 FG VV001 04/04 Q1010 NOSIG

211 Metars Downloaded

358 MetStns, 211 Metars Available

OpusWeatherReport (GRIB Data)

A detailed weather report for the lower and upper atmosphere wind and temperature data relating to the current location is generated from the current GRIB data each time the weather is updated. The report is saved in the text file <OpusFSI_v6>\Weather\OpusWeatherReport.txt where <OpusFSI_v6> identifies your OpusFSI_v6 installation folder.

Example OpusWeatherReport.txt,

OpusFSI Weather Report at [39,39], Software Version 6.00.0 Beta



Generated 25 November 2019, 10:06 Hrs - Imported



Simulator 30 May 2017, 14:25 Zulu



Destination : EGKK, LONDON/GATWICK A, Distance 204.3 km



Location : EGNX (m) East Midlands



Cruise Altitude : 8000 Feet



World Wide GRIB Data, 25 November 2019, 06:00 Zulu, Offset 3 Hrs



Tropopause Height 34503 Feet, Temp -56, Wind 161/43



Upper Atmosphere



81  50 km  :  Temp  0 , Wind 267/78  :  Top of Stratosphere (164,000 ft)

80  20 km  :  Temp -59, Wind 267/00  :  Top of Tropopause   ( 65,600 ft)

79  FL435  :  Temp -59, Wind 267/20

...

32  FL200  :  Temp -24, Wind 176/33



Lower Atmosphere



31  FL195  :  Temp -23, Wind 178/33

30  FL190  :  Temp -22, Wind 179/32

...

01  FL045  :  Temp 2  , Wind 179/19

00  FL040  :  Temp 3  , Wind 175/20



Surface : Temp  +9, Wind 110/11, Static 110/11





OpusFlightReport (Flight Plan)

If you specify a flight plan in the weather dialog then a detailed flight plan weather report is generated each time the weather is updated. TAFs are included if you have enabled them in the Weather Download dialog. Any configured alternate Met stations are shown within the Route section of the OpusFlightReport text file and appended at the end of the Weather report section in an Alternates section. Bracketed wind and temperature averages for all altitudes ranging from 4000ft up to 44,000ft in 1000ft increments are included in the report. Unknown temperature and dew points within the flight plan report are shown as ??. The report is saved in the text file <OpusFSI_v6>\Weather\OpusFlightReport.txt where <OpusFSI_v6> identifies your OpusFSI_v6 installation folder.

Example OpusFlightReport.txt,

OpusFSI Flight Plan Weather Report, Software Version 6.00.25
NAVDATA AIRAC Cycle No.1108, Revision 1
Generated 03 February 2020, 14:52 Hrs - Live
Simulator 30 May 2017, 13:20 Zulu



Plan:



EGNX TNT DTY EGKK



Route:



EGNX    EAST MIDLANDS         Lat  52.816667   Lon   -1.316667   Met Stn   United Kingdom

TNT     TRENT                 Lat  53.053889   Lon   -1.670000   Nav Aid        Freq 115.700

DTY     DAVENTRY              Lat  52.180278   Lon   -1.113889   Nav Aid        Freq 116.400

EGKK    LONDON/GATWICK A      Lat  51.133333   Lon   -0.166667   Met Stn   United Kingdom



Averages:



FL040   Wind 219/26   Temp   3C

FL050   Wind 218/28   Temp   1C

...

FL430   Wind 257/70   Temp -59C

FL440   Wind 257/69   Temp -59C



Weather:



----------------------------------------------------------------------------

EGNX    EAST MIDLANDS

----------------------------------------------------------------------------

FL040  229/27    2C      FL050  227/28    1C      FL060  223/30   -1C

FL070  226/32   -2C      FL080  233/33   -3C      FL090  234/36   -5C

FL100  235/40   -6C      FL110  238/45   -7C      FL120  240/51   -9C

FL130  242/57  -10C      FL140  244/63  -11C      FL150  244/71  -12C

FL160  244/77  -13C      FL170  245/78  -16C      FL180  246/79  -18C

FL190  247/80  -20C      FL200  252/95  -19C      FL210  254/96  -20C

FL220  254/98  -22C      FL230  254/99  -24C      FL240  254/100 -26C

FL250  254/101 -29C      FL260  253/102 -31C      FL270  253/103 -34C

FL280  254/102 -36C      FL290  254/102 -39C      FL300  255/101 -41C

FL310  258/102 -44C      FL320  261/104 -47C      FL330  263/106 -50C

FL340  266/108 -53C      FL350  267/106 -55C      FL360  269/104 -57C

FL370  270/103 -58C      FL380  270/98  -60C      FL390  269/88  -60C

FL400  265/85  -59C      FL410  262/83  -59C      FL420  259/80  -58C

FL430  256/77  -58C      FL440  254/75  -58C



EGNX, EAST MIDLANDS, At Location, 251020Z

Wind 180/9 Temp 10/9 Vis 7000m (4.3 miles) QNH 1011mb (29.86in)

Few at 900 feet, Light Rain

Scattered at 3000 feet



EGBB, BIRMINGHAM AIRPO, 49km (26nm), SW 217, 251020Z

Wind 160/6 Temp 10/10 Vis 8000m (5.0 miles) QNH 1011mb (29.86in)

Few at 3200 feet, Light Rain



----------------------------------------------------------------------------

TNT     TRENT                 35km (19nm), NW 318,  Total 35km (19nm)

----------------------------------------------------------------------------

FL040  229/27    2C      FL050  227/28    1C      FL060  223/30   -1C

FL070  226/32   -2C      FL080  233/33   -3C      FL090  234/36   -5C

FL100  235/40   -6C      FL110  238/45   -7C      FL120  240/51   -9C

FL130  242/57  -10C      FL140  244/63  -11C      FL150  244/71  -12C

FL160  244/77  -13C      FL170  245/78  -16C      FL180  246/79  -18C

FL190  247/80  -20C      FL200  252/95  -19C      FL210  254/96  -20C

FL220  254/98  -22C      FL230  254/99  -24C      FL240  254/100 -26C

FL250  254/101 -29C      FL260  253/102 -31C      FL270  253/103 -34C

FL280  254/102 -36C      FL290  254/102 -39C      FL300  255/101 -41C

FL310  258/102 -44C      FL320  261/104 -47C      FL330  263/106 -50C

FL340  266/108 -53C      FL350  267/106 -55C      FL360  269/104 -57C

FL370  270/103 -58C      FL380  270/98  -60C      FL390  269/88  -60C

FL400  265/85  -59C      FL410  262/83  -59C      FL420  259/80  -58C

FL430  256/77  -58C      FL440  254/75  -58C



EGNX, EAST MIDLANDS, 35km (19nm), SE 137, 251020Z

Wind 180/9 Temp 10/9 Vis 7000m (4.3 miles) QNH 1011mb (29.86in)

Few at 900 feet, Light Rain

Scattered at 3000 feet



EGCC, MANCHESTER INTL, 52km (28nm), NW 309, 251020Z

Wind 000/3 Temp 10/8 Vis 7000m (4.3 miles) QNH 1010mb (29.83in)

Few at 2100 feet, Light Rain

Scattered at 3500 feet

Broken at 4200 feet



----------------------------------------------------------------------------

DTY     DAVENTRY              104km (56nm), SSE 158,  Total 140km (75nm)

----------------------------------------------------------------------------

FL040  215/27    3C      FL050  213/28    0C      FL060  213/31   -1C

FL070  217/35   -2C      FL080  223/39   -2C      FL090  230/45   -3C

FL100  236/51   -3C      FL110  239/55   -4C      FL120  241/59   -5C

FL130  244/64   -7C      FL140  246/68   -8C      FL150  249/74  -10C

FL160  253/80  -11C      FL170  253/80  -13C      FL180  254/80  -15C

FL190  255/80  -18C      FL200  254/88  -17C      FL210  253/88  -19C

FL220  253/88  -21C      FL230  252/88  -23C      FL240  251/88  -26C

FL250  251/88  -28C      FL260  251/87  -31C      FL270  251/87  -33C

FL280  251/88  -36C      FL290  251/88  -38C      FL300  251/89  -41C

FL310  253/89  -44C      FL320  254/90  -46C      FL330  256/91  -49C

FL340  258/92  -52C      FL350  260/90  -54C      FL360  263/86  -56C

FL370  265/82  -57C      FL380  267/79  -59C      FL390  267/74  -60C

FL400  265/73  -60C      FL410  263/71  -60C      FL420  261/70  -59C

FL430  259/68  -59C      FL440  258/68  -59C



EGTC, CRANFIELD, 36km (20nm), ESE 110, 251020Z

Wind 170/10 Temp 12/11 Vis 32000m (19.9 miles) QNH 1012mb (29.89in)

Few at 1800 feet, Light Rain



EGTK, OXFORD, 41km (22nm), SSW 199, 251020Z

Wind 170/9 Temp 12/11 Vis 32000m (19.9 miles) QNH 1011mb (29.86in)

Few at 2500 feet, Light Rain

Scattered at 4500 feet



----------------------------------------------------------------------------

EGKK    LONDON/GATWICK A      133km (72nm), SSE 150,  Total 273km (147nm)

----------------------------------------------------------------------------

FL040  216/24    5C      FL050  218/27    3C      FL060  224/32    2C

FL070  229/36    1C      FL080  234/40    1C      FL090  237/47    0C

FL100  240/53   -1C      FL110  242/57   -2C      FL120  245/60   -3C

FL130  246/62   -4C      FL140  248/63   -5C      FL150  249/64   -7C

FL160  250/66   -9C      FL170  251/66  -11C      FL180  251/66  -13C

FL190  251/66  -15C      FL200  254/66  -17C      FL210  254/66  -19C

FL220  253/66  -21C      FL230  253/66  -23C      FL240  253/66  -25C

FL250  253/67  -27C      FL260  253/67  -30C      FL270  253/68  -32C

FL280  254/71  -34C      FL290  254/74  -37C      FL300  254/78  -39C

FL310  254/80  -42C      FL320  257/78  -45C      FL330  259/77  -48C

FL340  261/76  -50C      FL350  262/74  -53C      FL360  262/70  -55C

FL370  262/67  -57C      FL380  262/63  -59C      FL390  262/60  -61C

FL400  258/62  -62C      FL410  254/65  -63C      FL420  254/66  -63C

FL430  256/65  -63C      FL440  258/65  -62C



EGKK, LONDON/GATWICK A, At Location, 251020Z

Wind 190/9 Temp 14/12 Vis 32000m (19.9 miles) QNH 1014mb (29.95in)

Scattered at 1200 feet



EGKB, BIGGIN HILL, 24km (13nm), NNE 031, 251020Z

Wind 170/11 Temp 12/11 Vis 4500m (2.8 miles) QNH 1014mb (29.95in)

Scattered at 1500 feet



EGKA, SHOREHAM-BY-SEA, 35km (19nm), SSW 195, 251020Z

Wind 190/15 Temp 15/12 Vis 32000m (19.9 miles) QNH 1014mb (29.95in)

Few at 1800 feet

N.B. The OpusFlightReport.rep text file is a simplified text report intended to supply weather and upper wind and temperature data for external flight planning packages.



OpusSidStarReport (SIDs and STARs)

The Opus SID (Standard Instrument Departure) and STAR (Standard Terminal Arrival Route) Reports are generated for your departure and specified destination stations. The SIDs are only included if you are on the ground at an airport. Both SIDs and STARs are listed in normal order to match the GPS and FMC listings. The SIDs show the headings you would be departing to, the STARs show the directions you would be arriving from.

A report is generated when you click on the Reload or Process the Flight Plan buttons in the Flight Plan dialog, or the aircraft is relocated, or a different destination is specified. You can force a new report to be generated using the Show SIDSTAR Report option in the Addon Menu. The point of departure is always assumed to be the local airport, where your aircraft is located.

The report is saved in the text file <OpusFSI_v6>\Weather\OpusSidStarReport.txt where <OpusFSI_v6> identifies your OpusFSI_v6 installation folder.

Example OpusSidStarReport.txt,

 OpusFSI SID and STAR Report, Software Version 6.00.25

 NAVDATA AIRAC Cycle No.1108, Revision 1

 Generated 03 February 2020, 14:52 Hrs - Live

 Simulator 30 May 2017, 14:25 Zulu

EGNX East Midlands, SIDs (Standard Instrument Departures)

------------------------------------------------------------------------------

Name        Rwy   Fix         Latitude    Longitude       Distance     Heading

------------------------------------------------------------------------------

ASNI2N      27    ASNIP      53.478611    -2.907222    128km (69nm)     NW 304

ASNI3P      09    ASNIP      53.478611    -2.907222    128km (69nm)     NW 304

BPK2P       09    BPK        51.749736    -0.106736    146km (79nm)     SE 144

...

TNT3P       09    TNT        53.053953    -1.669970     34km (18nm)     NW 317

WAL2N       27    WAL        53.391936    -3.134461    136km (73nm)    WNW 298

WAL3P       09    WAL        53.391936    -3.134461    136km (73nm)    WNW 298

------------------------------------------------------------------------------



EGKK LONDON/GATWICK A, STARs (Standard Terminal Arrival Routes)

------------------------------------------------------------------------------

Name        Rwy   Fix         Latitude    Longitude       Distance   Direction

------------------------------------------------------------------------------

ASTR1F            ASTRA      50.865556    -0.146389     30km (16nm)      S 177

ASTR2B            ASTRA      50.865556    -0.146389     30km (16nm)      S 177

ASTR2H            ASTRA      50.865556    -0.146389     30km (16nm)      S 177

...

WILO3D            WILLO      50.985000    -0.191667     17km (9nm)       S 186

WILO3J            WILLO      50.985000    -0.191667     17km (9nm)       S 186

WILO4C            WILLO      50.985000    -0.191667     17km (9nm)       S 186

------------------------------------------------------------------------------



P3D Limitations

There are some limitations in P3D, Selective Update mode no longer works in Prepar3D due to problems in the P3D METAR interpolation and handling.

Also you must close a text report window before exiting P3D otherwise the sim crashes or causes OpusFSI to crash.



Spy Messages

Spy messages can be seen by clicking on the top right-hand Spy button on the server's main form.

The Live Weather Engine will report its nearest weather station along with all METAR downloaded reports.

The Spy window automatically clears after 30 minutes.



Live Weather Assistant

The Live Weather Assistant (LWA) provides useful weather information for the current Opus 800 x 800 mile weather map displayed graphically as a mosaic of 6400 weather cells in either a large or small footprint map.

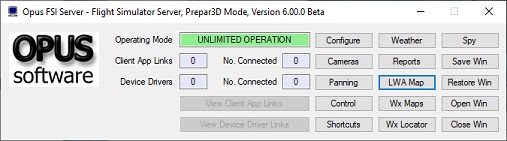

To display the larger LWA map select the LWA Map button from the server form (or the Live Weather Assistant Map button from the client main form). You can display the smaller map using the Wx Maps button on the server (or the Weather Maps button on the client). Up to six Weather Maps can be opened and positioned on the screen, just click on the Wx Maps (or Weather Maps) button to open each new map.

The weather maps can be generated before the flight has been loaded provided a flight plan has been specified, identifying the point of departure. The weather generation will be a slow process whenever the simulator is not running (due to SimConnect delays), fastest when the simulator is running and the flight has not been loaded (i.e. with the start up screen displayed or minimised).

The Live Weather Assistant option displays a large dialog containing a graphic weather map in which various types of weather data can be displayed using radio buttons to toggle between Surface Visibility, Surface Precipitation Levels, Surface QNH, Surface Temperature, Cruise Level Temperature, Upper Level Temperature, Surface Wind, Cruise Level Wind, Upper Level Wind, Cruise Level Turbulence, Upper Level Turbulence, Low Cloud Cover and Medium Level Cloud Cover.

The caption shows the date and time of the last weather update.

The LWA Map shows your current aircraft's location using the custom Aircraft symbol in the OpusFSI_v6/Aircraft.bmp bitmap file which you create yourself. If Aircraft.bmp does not exist then the default Aircraft_Light.bmp is used. An AircraftHeavy.bmp and AircraftRotor.bmp are also provided. If you create your own custom aircraft symbol then use roughly the same square sized bitmap image (43x43 pixels) and use the same magenta colour for the background.

OpusFSI aircraft1.bmp OpusFSI aircraft2.bmp

The location of your departure point (if known) is marked using a small green balloon and the destination using a small red balloon, your alternate sites using small yellow balloons and en-route flight plan navigation and waypoints points as small magenta balloons. SID fixes are green balloons and STAR fixes red balloons. The route is indicated using a dark magenta line. If the relevant options are enabled Met Station locations are shown as blue balloons and Aerodromes are shown as white balloons.

If SIDSTARS data for the aerodrome exists then the available runways are displayed, listed in preferred order based on the current surface wind at the station. All associated NAV and COM frequencies are also displayed below the runway information, i.e. all relevant ILS, APP (Approach), TWR (Tower), GND (Ground), COM (Unicom or Multicom), and ATIS frequencies.

Moving the mouse cursor about the screen displays the weather at that point in the dialog's information box, if the location identifies a Met station then the ICAO, station name, and elevation in feet AMSL are also displayed in the information box.

Hovering the mouse over a balloon will display the station's ICAO and name. Hovering the mouse over a wind arrow will display the wind speed and direction.

      The dialog can be resized with your mouse by dragging the edges or corners of the dialog. The LWA weather map's size and screen position are preserved and restored next time the LWA weather map is displayed.

You can drag the map with your right mouse button held down.

      You can zoom in and out on the map using the plus and minus symbols on the dialog or using the scroll button on your mouse. The zoom level ranges from 16 (fully zoomed in) to 2 (fully zoomed out). N.B. you cannot zoom whilst hovering the mouse over a marker on the map. Navigation aids are visible at zoom level 8 and above on the LWA and Wx Maps. The more numerous Waypoints are visibile at zoom levels 9 and above.

OpusFSI LWA map fully zoomed in OpusFSI LWA map fully zoomed out

Auto Zoom

When Auto Zoom is enabled (LWA Map or Options button) the level will automatically zoom in or out to fit both your aircraft and the departure/destination marker within the map. In Auto Zoom mode, once the aircraft descends below 100 feet AGL the aircraft is automatically centered on the map and the zoom level  changed to either 14, 15, or 16 depending on distance to the airfield marker, this is intended to aid taxiing.

Lock LWA Info Box

Left click the mouse within the map to LOCK the displayed information to the identified station. Once locked, all information within the LWA Info box will be displayed in RED.  Left click the mouse anywhere within the map display to UNLOCK the mouse and revert back to normal mouse roaming. The current state is indicated in a status text box just below the data box. The status box will also indicate when the LWE is Updating (Yellow), Disabled (Red), or operating in normal Enabled mode.

Aerodrome or Met Station Weather Monitor

Right click with the mouse over any aerodrome or met station on the LWA Map to display a small LWA Weather Monitor dialog. The dialog displays all known information about the identified station including its lat/lon coordinates, current distance and bearing to the station, all runways (in preferred order of use), all Nav and Com frequencies, and its current weather.

The SIDs and STARs button options use the selected station's ICAO code. The button options are greyed out if no departure or arrival data is available for the selected station. Refer to the SIDs and STARs section below for further details.

The Airways button opens the LWA Map Airways dialog which can be used to search for all Airways that have Navigation Points within the specified distance from the station (default 50nm). Refer to the Airways section below for further details.

The screen positions of the first 8 LWA Monitor dialogs are remembered by the software.

N.B. When a LWA Weather Monitor dialog is first opened some of the LWA Map weather data is used to prime the weather data, this is always displayed with a TIME code of 000000. After the weather has been updated by the FSI SERVER the TIME code will revert to the usual DDHHMM format showing the day and time code for any associated METAR.



The LWA Map option displays a large dialog containing a graphic weather map in which various types of weather data can be displayed.

You can choose between the following geographic map background options using the drop down menu,

·         Bing Street Map Bing Map

·         Bing Satellite Map Bing Satellite Map

·         Bing Hybrid Map Bing Hybrid Map

·         Google Street Map Google Map

·         Google Terrain Map Google Terrain Map

·         ArcGIS Street Map Google Terrain Map

The type of data displayed on the map is selected from the drop down menu,

·         No Data

·         Surface Visibility

Various shades of grey, from light to dark, represent the areas of reduced Surface Visibility.

·         Surface Precipitation

Four shades of light blue represent rain and four shades of grey to white are used for snow fall. The Precipitation map also shows the approximate location of any cumulonimbus and towering cumulus cloud formations. Active thunderstorms (CBs) are identified using a red exclamation mark, towering cumulus cloud formations (TCUs) are identified using an orange exclamation mark (in zoom levels 6 to 16).

·         Surface Pressure

The Surface Pressure (or Surface QNH) map is colour coded about the average surface pressure for the region, blue and green tints indicate areas of lower than average pressure, orange and red tints indicate areas of higher than average pressure. The full range extends +/- 15mb about the regional average.

·         Surface Temperature

All Met Stations on the smaller Wx Temperature map are displayed in black as the full spectrum of colours are used to represent temperature ranges from -18C and below (blue) through to 42C and above (red).

·         Cruise Level Temperature

Colour coded about the average temperature for the region with at least a 30 degree spread.

·         Upper Level Temperature

Colour coded about the average temperature for the region with at least a 30 degree spread.

·         Surface Wind

The Surface Wind speeds are colour coded using blue - green - yellow - orange - red tints to indicate calm (2 knots) to strong (32 knot plus) winds.

·         Cruise Level Wind

Colour coded about the average wind for the region with at least a 30 knot spread.

·         Upper Level Wind

Colour coded about the average wind for the region with at least a 30 knot spread.

·         Cruise Level Turbulence

The Turbulence Levels are colour coded using blue - green - yellow - orange - red tints to indicate calm to strong Turbulence levels 1 to 8.

·         Upper Level Turbulence

The Turbulence Levels are colour coded using blue - green - yellow - orange - red tints to indicate calm to strong Turbulence levels 1 to 8.

·         Lower Cloud Cover and Medium Cloud Cover

The Lower Cloud Cover map shows the maximum cloud cover under 6,000 feet AGL along with an indication of the reported cloud base, cloud cover in octas, and any thunderstorm and towering cumulus warnings. The Medium Cloud Cover map shows the maximum cloud cover between  6,000 feet and up to 26,000 feet AGL .

Therefore the maps do not show all the cloud layers, they report the most significant cloud layer that has the greatest cloud cover. Lower cloud bases are depicted in darker shades of grey and various brush patterns have been used to indicate areas of few, scattered, or broken cloud. Solid colour fills indicate areas of overcast conditions. Active thunderstorms (CBs) are identified using a red exclamation mark, towering cumulus cloud formations (TCUs) are identified using an orange exclamation mark (in zoom levels 7 to 16).

Upper Level Altitude Setting

An altitude can be selected for the Upper Level Temperature, Wind or Turbulence. Press the Update button to refresh the map.

N.B. The Update button will only work if the weather and GRIB data have been updated. The LWA Weather Map will not show any cruise or upper level data if none exists and the LWA information box will append the messages 'No Cruise Altitude' and/or 'No Upper Level Data' as appropriate.

Local Traffic

To get the traffic data on the server and client LWA Maps you must tick the Enable Live Traffic Updates option in the FSI SERVER and FSI CLIENT Configure dialogs. The traffic radius can be adjusted in the Configure dialog and can range from 32km (20 miles) to 192km (120 miles). The Reset button for Live Traffic data is used to force a change to the reported Live Traffic radius. The option cannot be used to disable Live Traffic once enabled, you will have to restart the FSI SERVER program for that.

Enabling Show Traffic (Options buttton) will display all local traffic within a 50 mile (80 Km) radius of your current position. A count indicates the total number of aircraft. The traffic markers are displayed as coloured aircraft symbols whenever the zoom level is set to Zoom Level 7 or more. GREY symbols are used to depict traffic on the ground, GREEN symbols depict airborne traffic that is not in conflict with your current altitude, and RED symbols are used to depict all airborne traffic that is within 2000 feet of your current altitude. The traffic symbols depict the traffic type based on the engine type and mode of flight, distinguishing between piston aircraft (light), jet aircraft (heavy), and rotorcraft types.  P3D does not generate any rotorcraft type AI traffic without an appropriate addon. Hovering over an aircraft symbol with the mouse cursor will display the traffic data (callsign, type, model, point of departure, destination, airline, flight number, elevation, ground speed). For example, G-AJLY, BOEING, B738 : EDDL to EGBB : 2147 ft 201 kts : World Travel, 3226.

Right-clicking over a traffic symbol will display a LWA Traffic Monitor box for real time monitoring of the selected aircraft or rotorcraft traffic. The LWA Traffic Monitor box will display the callsign, type, model, flight number, airline, point of departure, destination, distance and bearing from destination, distance and bearing from your aircraft, altitude, elevation, heading, and ground speed.

Options

Click on the Options button to set further map options.

An altitude can be selected for the Upper Level Temperature, Wind or Turbulence.

Opacity specifies the opacity for a map down to a minimum of 30%.

Enable the required options to Keep Aerodrome in Centre (enter the required aerodrome ICAO code in the adjacent box), Keep Aircraft in Centre or Keep Aircraft on the visible Map.

You can Show Wind Arrows on the LWA Map or disable them via the checkbox. The wind arrows will show the Cruise Level winds if any cruise data types are selected, and the Upper Level winds if any upper level data types are selected. For all other data types the wind arrow data will automatically change according to whether your current aircraft height is closest to the Surface, Upper or Cruise levels. Wind arrows will not be displayed if the winds are calm.

The Show Met Stations checkbox enables you to overlay the Met station locations as blue balloons.

The Show Aerodromes checkbox enables you to overlay the aerodrome locations as white balloons.

The Show Waypoints checkbox enables you to overlay the aerodrome locations as brown balloons. The Show Navaids checkbox enables you to overlay the aerodrome locations as yellow balloons. To prevent clutter on the maps a minimum zoom level of 9 is required before these markers are displayed.

The Show Traffic option is as described in the Local Traffic section above.

Selecting Map Server Cache will speed up the display of the geographic map by saving it to cache instead of downloading it via the internet. Note that for Google and Bing maps you are limited to the number of downloads you can perform during a session.

The Map Grey Scale option makes it easier to view certain data against the geographical map. All LWA and Wx Maps all default to a monochrome map display if no user preferences have been set.

The Auto Zoom option is as described in the section above.

Set Default Size changes the LWA map or small maps to their default size.

Set Minimum Size changes the LWA map or small maps to their smallest size, this is the same as its default size for the LWA map.

Top Most (default true) displays the map top most on the screen.

SIDs and STARs

The SIDs and STARs button options are accessible from either the LWA Map Options dialog or the Aerodrome or Met Station Monitor dialog. These options use the current Keep Aerodrome in Centre ICAO code (or the currently selected station if you have selected the option from an Aerodrome or Met Station Monitor) and displays either the LWA SIDs or the LWA STARs dialog displaying the Standard Instrument Departures (SIDs) or Standard Terminal Arrival Routes (STARs) for the specified aerodrome.

Combo boxes select the runway and fix point of interest. These both default to 'ALL RUNWAYS' and 'ALL FIXES' when the dialog is first displayed. These options are available on all LWA Maps however only one SID and one STAR dialog can be displayed at any one time. This allows you the freedom to either use separate LWA Maps to examine the available SIDs and STARs, or examine the SIDs and STARs on the same LWA Map, changing the specified aerodrome ICAO code as appropriate.

Individual fixes listed within the SIDs, STARs, and Airways dialogs can be selected with the mouse cursor. Once selected the LWA or Wx Map will be automatically centred on the selected navigation point and the map's zoom level will be checked to ensure a minimum zoom level of 10. To use this feature it is best to have selected the 'Plot Route On Map' option first, otherwise the navigation point may not be visible on the map. It is also necessary to turn off the map centering options if you wish to alter the zoom level and examine the area surrounding the selected navigation point.

Click on Plot Route on Map to display your selected route on the map. You can click again on the same route to remove it from the map. The text box immediately above the Plot Route On Map button displays the sequence of SID or STAR fixes in a sequential format so that they can be easily copied (highlight + Ctrl C) and pasted (Ctrl V) into your flight plan.

The new LWA Maps plot all route lines in a dark magenta colour, all flight plan waypoints in magenta, the departure in green, the destination in red, all alternates in red, all SID fixes in green, and all STAR fixes in red. In other words,

Magenta = Route Lines and Flight Plan Waypoints,
Green = GO = Departure Point and SID Fixes,
Red = STOP = Destination and STAR Fixes.



Airways

The Airways button is accessible from an Aerodrome or Met Station Monitor dialog.  The button option opens the LWA Map Airways dialog which can be used to search for all Airways that have Navigation Points within the specified distance from the station (default 50nm).

Clicking on any listed Airway displays a list of its Navigation Points.

The Reverse checkbox option can be used to reverse the order of the Navigation Points making it handy to cut and paste from the lower text box.

The Plot Route On Map option will plot the Airway's route on the LWA Map. Large pink dotted markers along the route are used to identify each of the Airway's navigation points.

Individual fixes listed within the Airways dialog can be selected with the mouse cursor. Once selected the LWA or Wx Map will be automatically centered on the selected navigation point and the map's zoom level will be checked to ensure a minimum zoom level of 10. To use this feature it is best to have selected the 'Plot Route On Map' option first, otherwise the navigation point may not be visible on the map. It is also necessary to turn off the map centering options if you wish to alter the zoom level and examine the area surrounding the selected navigation point.

The Airways option is not available on the small footprint maps.

N.B. At present the new 'Airways' LWA Map feature is not functional on FSI CLIENT systems.

The Map Centre and Aircraft Position coordinates are displayed at the bottom of the LWA dialog.

The Live Weather Assistant (LWA) dialog can be resized and maximised on the screen.

If the map is not displayed then it is possible that your map may be hidden behind the sim window, if so minimise the sim, reposition the Weather Map and continue.



Small Footprint Weather Maps

The Wx Map option displays weather data but with a much smaller screen footprint. Select the geographic map type and weather data options from the dropdown menus, you can also scroll through the data displays using your mouse scroll button.

The Options button enables you to select further options as described above for the LWA Maps with the exception that you cannot display airways.

The + plus and - minus buttons are used to zoom in and out. Up to four small maps may be displayed.

Live Weather Assistant can also be used on networked client PCs/laptops. If you are using a networked client only for Live Weather Assistant (and/or Client Side Live Weather Control) then NO license, sim, or FSUIPC is needed on the client, they are only required if you are using Live View.



Client Side Live Weather Control

If you are using the networked client PC only for live weather control (i.e. entering weather or flight plan data, or requesting reports via the client dialogs) then NO license, sim, or FSUIPC is needed on the client. Configure your client PC in accordance with the Getting Started Networked PCs guide.

On the Client main form there is a button labelled Live Weather Control. Select this to display the Live Weather Control dialog.

OpusFSI Live Weather Control

You are presented with options to display the text reports, weather report windows, edit the flight plan and other flight parameters. Text reports are displayed on the client, weather report windows are displayed on the server.

Reload Weather (no cloud/visibility smoothing) and Update Weather always checks the GRIB for currency and downloads all required METARs from your specified Weather Server (the NOAA site is the Primary source). Refresh Weather updates the weather using the previously downloaded METARs, it builds a new weather map and refreshes the weather within the sim. If no previous weather data has been downloaded then the Refresh option does the same as the Update option.



Weather Location and Displaying Weather Maps on the Client

You can also use the client for locating weather using the Wx Locator button option on the main Client form and for displaying weather maps using the LWA Map and Wx Maps buttons.



PMDG FMC Wind/Temp Data Request

You must have a PMDG aircraft selected.

Enable GRIB data. You must enter or Import your flight plan into Opus, then the FP must be activated either via the OpusFSI Process option in the Flight Plan dialog or via the P3D options. Specify your Destination and Cruise Altitude, then Update the weather.

Only after this will Opus be able to generate the file. The PMDG weather report is generated in "OpusPMDGData.txt" and copied as XXXXYYYY.wx (where 'XXXX' is the departure's ICAO code and 'YYYY' is the destination's ICAO code) into the <sim>\PMDG\WX folder.

There is no need to cut and paste anything. In the airplane on the LEGS page select WIND DATA, press WIND DATA REQUEST and the data will automatically load the values into the FMC, press EXECUTE to finish. Note that it is best if your cruise altitude is already entered on the PERF INIT page before you do this as it helps the PMDG algorithm narrow down the correct altitudes to use.

If you are using PFPX to generate your flight plan then it must be exported in two formats, one for the PMDG to its dedicated folder, and one in P3D .pln format to your docs/<SIM>/ folder so Opus can read it.

Trouble shooting ...

Make sure the GRIB data has been downloaded and decoded, if not check your \OpusFSI_v6\FSIDECODER.log file.

Check the content of your OpusPMDGData.txt text file in the OpusFSI_v6\Weather folder. Is your wx data in this file? If so then it's a simple case of not being able to copy the OpusFSI.wx file into your <P3D>\PMDG\WX folder. Perhaps it's a sharing and permissions issue.

OpusFSI uses the English (GB) culture for the decoding format, do not change any settings in this culture especially the decimal separator type.



FSUIPC Settings

FSUIPC is not required on the FSI SERVER system unless you intend to run P3D at increased simulation rates. FSUIPC is required on Live View FSICLIENTs that are used to display camera views.

You can download a free copy from http://www.fsuipc.com

Turn everything off in FSUIPC, we recommend disabling all settings. We do not use FSUIPC for any weather or turbulence related effects.

If you choose not to install/activate FSUIPC then at the moment Opus will not be able to pause the sim, it is normally paused when opening certain Opus dialogs. Hence you will have to pause and unpause the sim manually.

To disable FSUIPC simply remove the associated <Launch.Addon>...</Launch.Addon> entries within the simulator's dll.xml file.

<Launch.Addon>

  <Name>FSUIPC 5</Name>

  <Disabled>False</Disabled>

  <Path>Modules\FSUIPC5.dll</Path>

</Launch.Addon>



Reporting Anomalies and Errors

Please email your c:\OpusFSI_v6\Weather\OpusWeather.txt file along with any report. This text file contains a copy of all the downloaded METAR data along with the identity of your nearest weather station. We can use this file to import the same meteorological conditions into our system and check the results.

Please email reports to opusfsi@opussoftware.co.uk



FAQ

I can't get the dynamic weather to work

Ensure you have identified the correct sim type (for the sim you are currently running) and installation folder in the Configuration dialog and have sharing enabled, and set sharing and security permissions as per the Getting Started guide.

If you don't have OpusFSI options within the add-on menu then it hasn't been installed correctly. Follow the Getting Started Guide for Single PCs very carefully. Do not install OpusFSI in a sub-folder of Opus Software, P3D or Program Files since it causes permission problems. Run your sim before runing OpusFSI. Make sure your internet connection is working. Ensure you have Enable Live Weather Engine checked in the Configure dialog. Ensure you have unchecked Import METAR Data From File, unchecked Enable World Weather Theme, and unchecked Global METAR Conditions in the Weather dialog. If you open the spy window and force a weather update via the P3D addon menu (or click on Update Weather in the Weather dialog) then you should see the weather being generated. Also if you open the weather report window via the P3D add-on menu it will show the last time of update.

Unable to view Live Weather or "Unable To Update Dynamic Weather" spy message

This error most likely results from a failure to copy the generated OpusWeather.WTB file. The software needs to copy this from ... <opus_install_folder>\Weather\OpusWeather.WTB to ... <P3D_install_folder>\Weather\Weather\OpusWeather.WTB

So, your system does not have sharing enabled, or security and permissions set to allow OpusFSI to write to the P3D installation folder.

You can check the first by confirming there is a Weather sub-folder.

You can check the second using the Command Prompt, navigating to c:\OpusFSI_v6\Weather and trying to manually copy the file. Most probably you have installed P3D in the Program Files folder and there is no sharing or access rights to this folder. Refer to our Getting Started guide for details on how to set up sharing and security permissions.

I can't load or decode GRIB data

Tick Enable GRIB Forecast Data in the Weather Download Options dialog.

Check the Upper Atmosphere Weather Report window, it will notify you if there is no GRIB data.

Check your \OpusFSI_v6\FSIDECODER.log file for errors.

If you use a proxy server or have configured Internet Explorer to use a proxy server (IE settings, Internet options, Connections tab) then it may not allow you to download files in which case you will not get GRIB data.

If your GRIB data is not decoding then it may be caused by a setting in the Windows operating system culture setting. OpusFSI automatically selects and uses a generic English (GB) culture to ensure correct floating point number conversion. We have had problems where people have edited the English culture setting and changed the Windows Number format decimal separator from a dot to a comma. Ensure the dot character is assigned as the decimal separator in the Windows Number format, not the comma.

If you can't extract or decode GRIB data then delete everything except the degrib.exe program from your OpusFSI_v6\GRIB folder. If this doesn't work delete the GRIB folder and reinstall OpusFSI since the degrib.exe program may be corrupted.

Ensure you don't have more than one copy of OpusFSI installed via Control Panel. If you do then uninstall all versions and reinstall the latest version. Do not install OpusFSI in a sub-folder of Opus Software, P3D or Program Files since it causes permission problems.

Never run antivirus software when using the sim, all AV software will adversely effect the sim performance.

Weather keeps changing erratically

Ensure you don't have any other software packages injecting the weather. In P3D Free Flight, Weather, set your P3D Current Weather to any weather theme, just don't enable the real world weather options. Check that no other weather engines are running. Disable AS16 weather using their tool prior to running Opus since their DLL will corrupt the weather. If flying online don't inject weather from FSInn etc.

Too much haze or bad visibility in P3D

If you have a pea soup fog around your aircraft when flying with P3D then you most likely have Volumetric Fog enabled in P3D and do NOT have the option enabled within the OpusFSI Weather Preferences dialog.

P3D can't load weather theme error message

It could be that you are loading a saved flight which is referring to a non-existent weather theme. Click OK to that sim error message, update the weather once more, then resave your flight.

P3D crashes when I load a saved flight

Load the flight without running OpusFSI, save the flight, then run OpusFSI.

I see horizontal 'bands' of haze with clear areas between

This is a known issue with 3rd party packages, make sure you have disabled your 3rd party weather engines and in addition disabled/removed all their visibility, haze and fog effects.

A way to remove it with AS2012 is:

1: Start AS2012

2: Start P3D, load a flight

3: Once you are at airport of choice, open AS WX Options / Visibility

4: Make sure the following options are ticked;

    a: fog layer generator

    b: Untick 'Use stratus for fog'

    c: Tick 'Enable Visibility Graduation and Smoothing' and set to 9000ft

    The sliders should be set from top to bottom 0,65,65

    Save and Apply.

    Do this in the Status page also.

5: Shut down AS and P3D

Now repeat steps 1-3.

This time you will do the reverse,

a: Untick fog layer generator

b: Untick 'Use stratus for fog'

c: Untick 'Enable Visibility Graduation and Smoothing'

Save and Apply as above.

I get a consistent static cloud layer that forms above the aircraft (cloud of doom)

This is not an OpusFSI problem, we have just provided a solution to a problem that occasionally occurs on some systems due to a corrupt or faulty cirrus overcast bitmap mask file in the P3D Texture folder. If your system has a faulty bitmap file it will be quite obvious, there will be a thick cloud hovering above you wherever you fly.

If your system suffers from this problem then please follow the instructions below for the cure.

Make sure you have disabled your 3rd party weather engines and in addition disabled/removed all their visibility, haze and fog effects. You must replace the cirrus_overcast03.bmp file within your flight simulator's Texture folder as follows,

1. Navigate to your simulator's texture folder <Prepar3D>\Texture

2. Rename your cirrus_overcast03.bmp file to cirrus_overcast03_foggy.bmp.

3. Truncate our cirrus_overcast03_Opus.bmp filename to cirrus_overcast03.bmp.

4. Restart your P3D simulator.

I tried importing METAR data from a user specified import file but it didn't work.

METARs are specific to a location unless you use the GLOB ICAO code which is global. If you use a METAR for a specific station and try to import it when you are outside the 1280km x 1280km area of the weather region then the Live Weather Engine will not accept the report since the met station is not within your area.  The met station must also coincide with one used within P3D so that OpusFSI, which has a list of all valid P3D met stations, can identify its lat/long coordinates, and hence its location relative to your aircraft's current location. If you only have one METAR then change the ICAO code to GLOB and import that.

Overspeed and Underspeed warnings

If you are flying with the sim rate speeded up, especially above x2 then it is possible to get overspeeds or underspeeds. Even at x2 speed, your auto pilot or P3D may oscillate the air speed repeatedly causing repeated overspeeds. You should disable the P3D stress causes damage option.

Overcast

Low Overcast Effects come into force whenever the overcast cloud cover is less than about 6000 feet AGL. You must be IN the Low Overcast Effect to see it. Overcast by definition means 90% or more cloud coverage. Don't expect to see solid blanket type overcast when looking vertically downward ... you WILL see transparent holes just like you do in real life until you get IN an OpusFSI Low Overcast Effect (an overcast below 6000 feet).

Wind shifts

The possibility of wind shifts cannot entirely be ruled out, this is due to bugs in the P3D code, that's why you should always disable the 'Aircraft stress causes damage' sim option.

We recommend the Opus defaults for weather update frequency and distance. If you have long periods between weather updates or refreshes then eventually, in not too long a time, the sim will drift away from its targets and start to do its own thing. Eventually when you do come to update the weather you will generate large wind shifts.

If you are flying with the sim rate speeded up, especially above x2 then it is possible to get wind shifts. Certain aircraft sims are more susceptible to wind shifts.

If the sim is struggling to cope due to the number of add-on packages, detailed scenery, high defintion high resolution cloud textures (we recommend non HD low resolution textures) etc then wind shifts are more likely.

If your system has wind shifts enable the Adjust Sim Friendly options (Weather Download).

PMDG 737 NGX Problems
Problems with "S" turns, auto pilot disconnects, wind shear alerts at cruise altitude and severe wind shifts may be cured by putting in an assumed temp in the NGX FMC Perf page, which you can get from your GRIB report (OpusWeatherReport.txt or Upper Atmosphere weather report window), for cruising altitude, ensure you don't omit the minus sign if appropriate.

Winds are incorrect

If the surface winds are not correct check that you don't have the Relocate Weather, Import METAR Data from File, Global METAR Conditions or World Weather Themes enabled by mistake.

Set all weather defaults before flight, specify your Destination and Max Cruise Altitude, and update the weather.

Ensure the GRIB data is downloaded by monitoring the download in the OpusFSI Weather Reports, Lower or Upper weather reports, or the Spy window.

Consult the various weather information, the Lower and Upper weather reports, the OpusWeatherReport (GRIB) report text file, your OpusFlightPlan.txt report file, the weather maps etc.

My temperatures are too high

Make sure you put in an assumed temp where possible for your aircraft sim (e.g. in the NGX FMC Perf page), which you can get from your GRIB report (OpusWeatherReport.txt or Upper Atmosphere weather report window), for cruising altitude, ensure you don't omit the minus sign if appropriate.

Ambient temperature = SAT (Static Air Temp) = OAT (Outside Air Temp)

SAT = Static Air Temp ... i.e. what the air temp would be if it were static (or when your airspeed is zero).

TAT = Total Air Temp ... the effective air temp taking into account your airspeed.

The TAT is a calculated value, it is calculated within
P3D or the aircraft sim and is always warmer than the SAT due to compressional heating of the air molecules. The air has to be slowed down to be measured and hence gets heated. Hence the TAT is dependent on your airspeed (actually the square of your airspeed as a Mach number) and also on the ratio of specific heats of the ambient air (i.e. how dry or moist the air is - which effects air density - which determines the number of air molecules being heated).

At the typical airliner cruise speeds (0.75+ Mach) a TAT of 20 to 28 degrees warmer than SAT is perfectly normal.

I don't have any turbulence

If you are not using Live Camera then enable DHM in the Server's Configuration dialog.

For turbulence on the aircraft itself select both the Bump Aircraft (not in P3D) and Turbulence Effects options (Turbulent Motion and/or Turbulent Bump) within DHM. Enable P3D turbulence (which is set via the P3D menu option - Options, Settings, Display. Select the Weather tab, there is an option for turbulence and thermal effects on the aircraft).

If you can't see the DHM effect on your aircraft then set the "\OpusFSI_v6\P3DSERVER.EXE" file properties (compatibility tab) to "Run as Administrator". This can be done by right clicking on the program in Windows Explorer or right clicking on the desktop shortcut.

I don't have any wing flex

To see wing flex enable P3D turbulence, also the 'Advanced Animations' option in the P3D menu option - Options, Settings, Display - Graphics tab.

Cloud popping

We have introduced our new Cloud Smoothing software in Beta 3.38. This software preserves all localised cloud coverage during weather updates and hence prevents all major cloud popping during the weather updates.

You should note that,

• P3D is responsible for positioning all clouds on the screen, the weather engine cannot do this, it can only specify the cloud coverage and associated parameters such as cloud type, cloud base, depth etc.
• P3D will reposition all clouds each time the weather is injected, nothing can stop this.
• P3D selects all cloud bitmap textures and renders them on the screen, the weather engine specifies the cloud coverage, type, and other parameters, but it is P3D that does the rest.
• P3D will, for good reasons, extend patterns of cloud coverage, including areas of clear sky, across cell boundaries, each weather cell being 10 x 10 miles in size. If P3D strictly adhered to the cellular pattern then the weather would look completely phoney and unreal. So it 'bleeds' the weather across the cell boundaries, extending or retreating areas of cloud coverage as it see fit.

This last effect is what most people refer to when they talk about cloud popping, really as a result of not knowing how P3D depicts the weather and wrongly assuming the weather engine is causing it or can stop it.

If you don't have Cloud Smoothing enabled and after a weather update you see the cloud around you disappear then take a look behind you, its odds on that P3D had previously decided to extend this cloud cover all around you and after the weather update it gives more precedence to the new weather and cloud cover that is either in front or around you. It is also possible to notice cloud that is around you retreating away into the distance some miles in front of you. Again this is just P3D extending or retreating the cloud boundaries as it sees fit in an attempt to eliminate the cellular structure and prevent a mosaic effect in the sky.

If you actually monitor the Opus Lower Cloud Cover weather map you will see that the map and the cloud coverage is very stable, it obviously will change to reflect the reported cloud coverage in the METAR reports, so if they change the map will change but in a very predictable way. However you may notice that during weather updates or refreshes P3D has decided to reposition the cloud boundaries, extending some and retracting others, so that the cloud coverage around you changes drastically. Nothing much can be done about this as no engine has control over the P3D code.

You can try setting the 'Cloud Smoothing' Opus weather option, this guarantees to preserve the cloud cover surrounding your aircraft whenever it can. This can help minimise cloud popping although nothing can stop it altogether bar rewriting the P3D code.

Error message "access denied" when trying to display reports on the client LWE Control PC

You must set the sharing, sharing permissions, and security permissions on your server for the OpusFSI installation drive and folder so that the client will be able to access the files in your OpusFSI_v6\Weather folder on your server. See the Getting Started Guide for Networked PCs for details.

In the client configuration dialog when specifying the network identity (name or IP address) of your main P3D server machine if you are using Computer Names in the configuration then try using IP addresses and vice versa.

Error message " The network name cannot be found" when trying to display reports on the client LWE Control PC

All drives should be shared using their same letter code (drive share name of C or D etc) otherwise the remote software will not be able to build its correct file specifications.

Why can't I run the Live Weather Engine on a client PC?

The LWE does not affect the performance of the simulator at all so does not need to be offloaded onto a client. If it were offloaded it would actually be far less efficient and may even impact on the simulators performance since all data would not only have to be communicated via the LAN but it would also make it more difficult to supervise the real world intelligent turbulence in real time. Hence, the clients can be used to control and monitor weather related data but the LWE itself runs on the main server system.


Home  About Us  Products  Downloads  FAQ  Gallery  Testimonials  Contact  Links
